Product >> Connector >> TNC



The Isis Technology specialize in high quality RF connector, adapter, and cable assemblies. With great pricing, Isis Technology want to supply you quality of products to meet your need. Check our on-line list for the components you’re looking for and contact us for more questions.
Isis Technology has strong R&D capability. If you can't find connector you need in below list. Please contact us. We can design and build new solution for you.





M01-030300-00

<< Top



Frequency 0-11GHz(50ohm)/0-2GHz(75ohm) V.S.W.R. 1.30 max. (Straight)
Working Voltage 500V max. 1.50 max. (Right Angle)
Dielectric Strength 1500V RMS Insulation Resistance 5000 Megohms min.
Impedance 50 ohms / 75 ohms

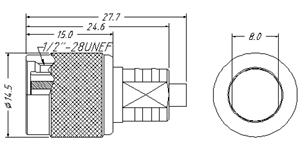

M01-033020-00

<< Top



Frequency 0-11GHz(50ohm)/0-2GHz(75ohm) V.S.W.R. 1.30 max. (Straight)
Working Voltage 500V max. 1.50 max. (Right Angle)
Dielectric Strength 1500V RMS Insulation Resistance 5000 Megohms min.
Impedance 50 ohms / 75 ohms





M01-034230-78

<< Top



Frequency 0-11GHz(50ohm)/0-2GHz(75ohm) V.S.W.R. 1.30 max. (Straight)
Working Voltage 500V max. 1.50 max. (Right Angle)
Dielectric Strength 1500V RMS Insulation Resistance 5000 Megohms min.
Impedance 50 ohms / 75 ohms





M01-TNC200-PR

<< Top



Frequency 0-11GHz(50ohm)/0-2GHz(75ohm) V.S.W.R. 1.30 max. (Straight)
Working Voltage 500V max. 1.50 max. (Right Angle)
Dielectric Strength 1500V RMS Insulation Resistance 5000 Megohms min.
Impedance 50 ohms / 75 ohms





M01-034220-02

<< Top



Frequency 0-11GHz(50ohm)/0-2GHz(75ohm) V.S.W.R. 1.30 max. (Straight)
Working Voltage 500V max. 1.50 max. (Right Angle)
Dielectric Strength 1500V RMS Insulation Resistance 5000 Megohms min.
Impedance 50 ohms / 75 ohms
